Ball Aerodynamics

Overview

Every legendary free kick comes down to one thing: how the ball interacts with the air. A curving shot bends around the wall. A knuckleball zigzags like it's possessed. To understand why, we need to look at what happens when a cylinder (the 2D analogue of a soccer ball) moves through a fluid with and without spin.

See the Theory page for the full derivation, the Reynolds number, and all governing equations used across this project.

Magnus Effect: The Predictable Curve

When a player strikes a ball with high spin, the rotation drags air faster on one side and slower on the other. This creates a pocket of low pressure on the fast-moving side, physically pulling the ball sideways in a smooth, predictable arc. The spin locks the flight path into a stable pattern.

The lift force generated by this pressure difference is given by the standard lift equation:

In soccer, this is the physics behind every great free kick taker. David Beckham could make the ball dip and swerve with devastating precision. Lionel Messi's curled finishes into the top corner are a masterclass in applying the right spin at the right moment. The goalkeeper sees the spin, reads the curve, and dives. It's hard to save, but it's predictable.

Watch this ridiculous spin on a Messi free kick:

Knuckleball: Erratic Flight Path

Kicking a ball with almost zero spin removes the stability. As the ball cuts through the air, the wind can't decide which way to go. It starts shedding alternating vortices, think of them as tiny tornadoes peeling off left, then right, then left again. Each one tugs the ball in a different direction.

The alternating shedding pattern is called a von Kármán vortex street, and it produces a lateral force that flips direction with every shed vortex. The goalkeeper can't predict it, and neither can the shooter.

In soccer, this is the knuckleball, a shot with minimal spin that jitters erratically through the air. Cristiano Ronaldo made this his signature during his Manchester United and Real Madrid years, striking the ball with a straight, locked ankle to kill the spin. Gareth Bale used it to devastating effect, most famously in the 2014 Copa del Rey final where his knuckleball from distance wrong-footed the goalkeeper entirely. Hakan Çalhanoǵlu, modern football's deadliest free kick specialist, is a master of both techniques: mixing spin and knuckleballs unpredictably from distance.

Watch Çalhanoǵlu completely bamboozle the goalkeeper:

Python Simulation

I built this simulation in Python using ΦFlow, a JAX-based CFD framework. The purpose is to show the low-resolution behaviour of the flow (the vortex street, the pressure asymmetry, the wake structure) with fast, interactive animations that make the physics visible at a glance. ΦFlow runs on a structured grid without a turbulence model, so the results are qualitative rather than quantitatively precise. The key findings will be validated below using SU2, a heavier finite-volume RANS solver.

In the ΦFlow simulation, a 2D cylinder is analyzed in crossflow at $Re \approx 4 \times 10^4$, rotating case ($\omega = 10$ rad/s) vs non-rotating ($\omega = 0$). The inferno colormap runs dark blue (slow) to bright yellow (fast). The magma colormap runs dark purple (low pressure) to bright yellow-white (high pressure).

Pressure Field

The pressure field is the most direct way to see the forces acting on the cylinder (and by analogy, the ball). The magma colormap runs dark purple (low pressure) to bright yellow-white (high pressure). Flow enters from the left at 1.0 m/s.

In the no-spin case, the pressure field is initially symmetric. A bright stagnation zone forms at the front where the flow slams into the cylinder. But this symmetry is unstable; after a few seconds, the dark low-pressure zone behind the cylinder begins to wobble, detach, and fling itself from side to side. Each wobble is a von Kármán vortex being born and shed into the wake. The alternating pattern means the sideways force on the cylinder flips direction with every vortex.

In the Magnus case, the asymmetry is locked in place from the start. The side rotating with the flow shows lower pressure (darker), while the side rotating against the flow shows higher pressure (brighter). This pressure difference across the cylinder never flips because the rotation constantly reinforces it. Behind the cylinder, the low-pressure wake remains narrow and steady. The spin suppresses the natural vortex-shedding instability.

Velocity Field

The velocity field tells us about the wake structure, drag, and how the flow organizes itself around the cylinder. The inferno colormap runs dark (slow) to bright yellow-white (fast). Streamlines trace particle paths through the flow.

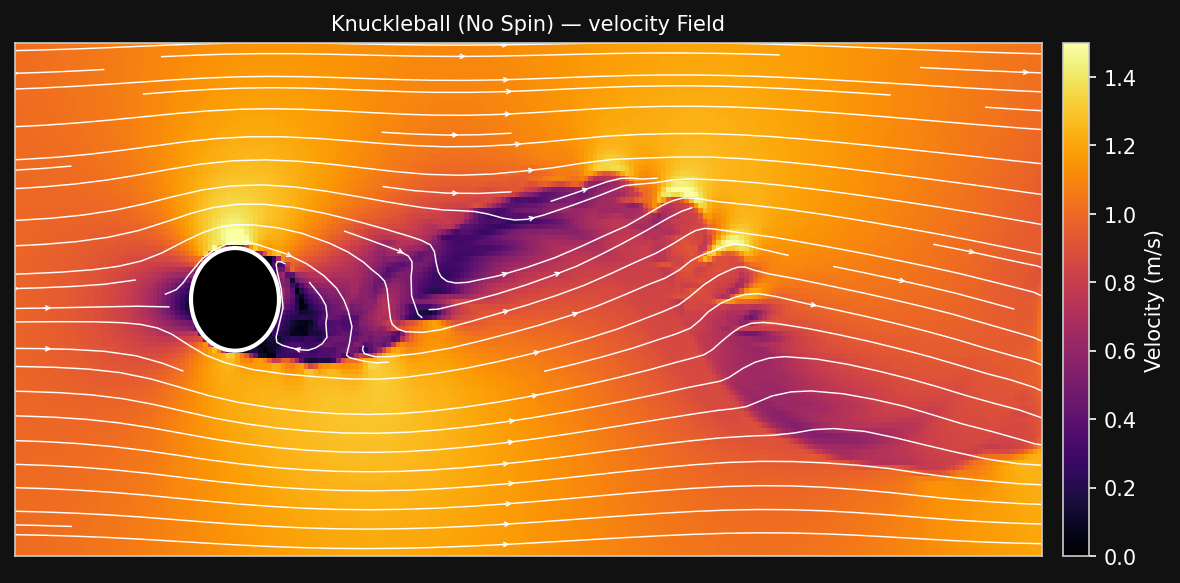

In the no-spin case, the wake is initially symmetric and quiet. But soon the streamlines begin to curl up into rolling spirals, von Kármán vortices forming. They peel off alternately from top and bottom, growing larger as they travel downstream. The wake becomes wide and chaotic. The dark low-velocity zone extends far downstream, much further than in the Magnus case. That is the visual signature of higher drag: more momentum is drained from the flow.

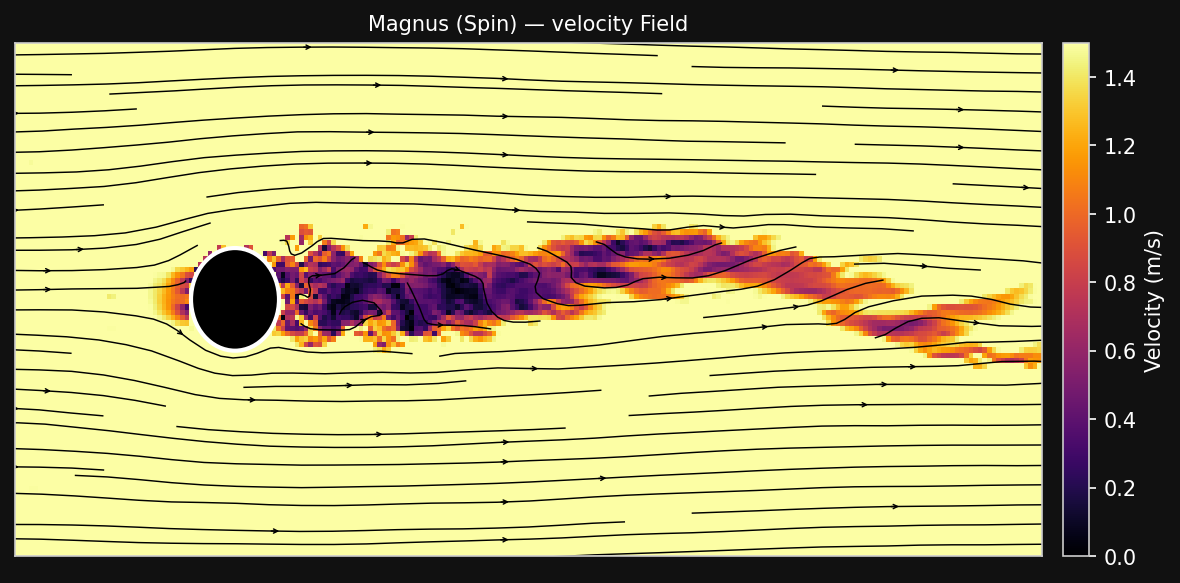

In the Magnus case, the wake stays narrow and consistent throughout. The streamlines angle away from the centerline in one direction, showing the steady lift force. The dark slow-moving region behind the cylinder is compact and does not grow. The streamlines in the wake show smooth, ordered flow rather than chaotic eddies. This is the signature of a flow stabilized by rotation.

Wake Comparison at the Same Timestep ($t \approx 85.5$ s)

Drag the divider to see the full difference at the exact same simulation moment.

CFD Validation Results

The visualizations above come from ΦFlow, which solves the laminar Navier-Stokes equations on a structured grid. To verify that the physics is correct, we cross-validate against SU2, a high-fidelity finite-volume RANS solver. For a full breakdown of the methodology, simulation conditions, and quantitative comparisons across six cases (3 Re × 2 spin states), see the CFD section.

Below are interactive sliders comparing SU2 pressure and velocity fields at Re=120 (the most dynamically interesting regime) for no-spin vs Magnus spin. In each slider, drag the divider to reveal either field fully.

Pressure Field (Re=120, t=89.7s)

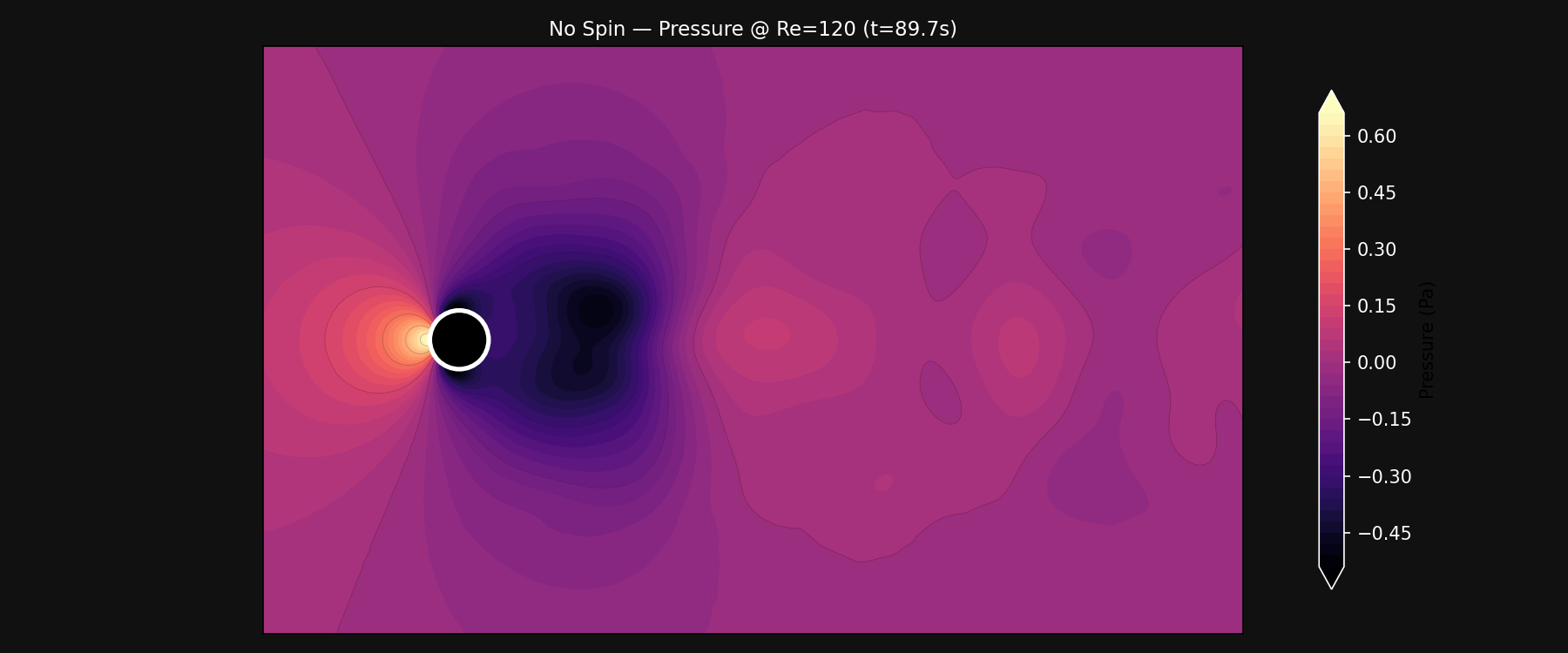

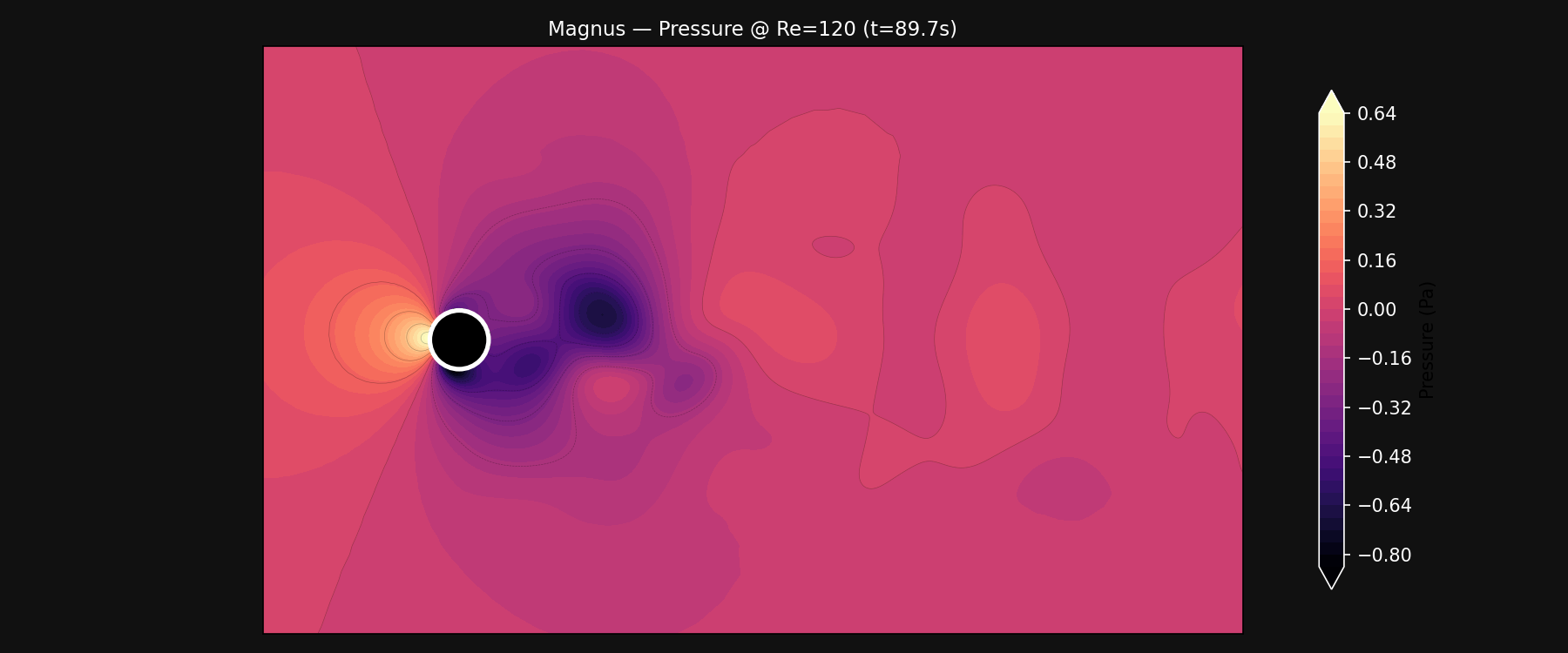

The no-spin case shows a large low-pressure zone behind the cylinder that appears as a broad symmetric blob in the wake at this snapshot. The Magnus case shows alternating low-pressure vortices shedding downstream, though the pressure deficit in each vortex is smaller in magnitude than in the no-spin case.

Velocity Field (Re=120, t=89.7s)

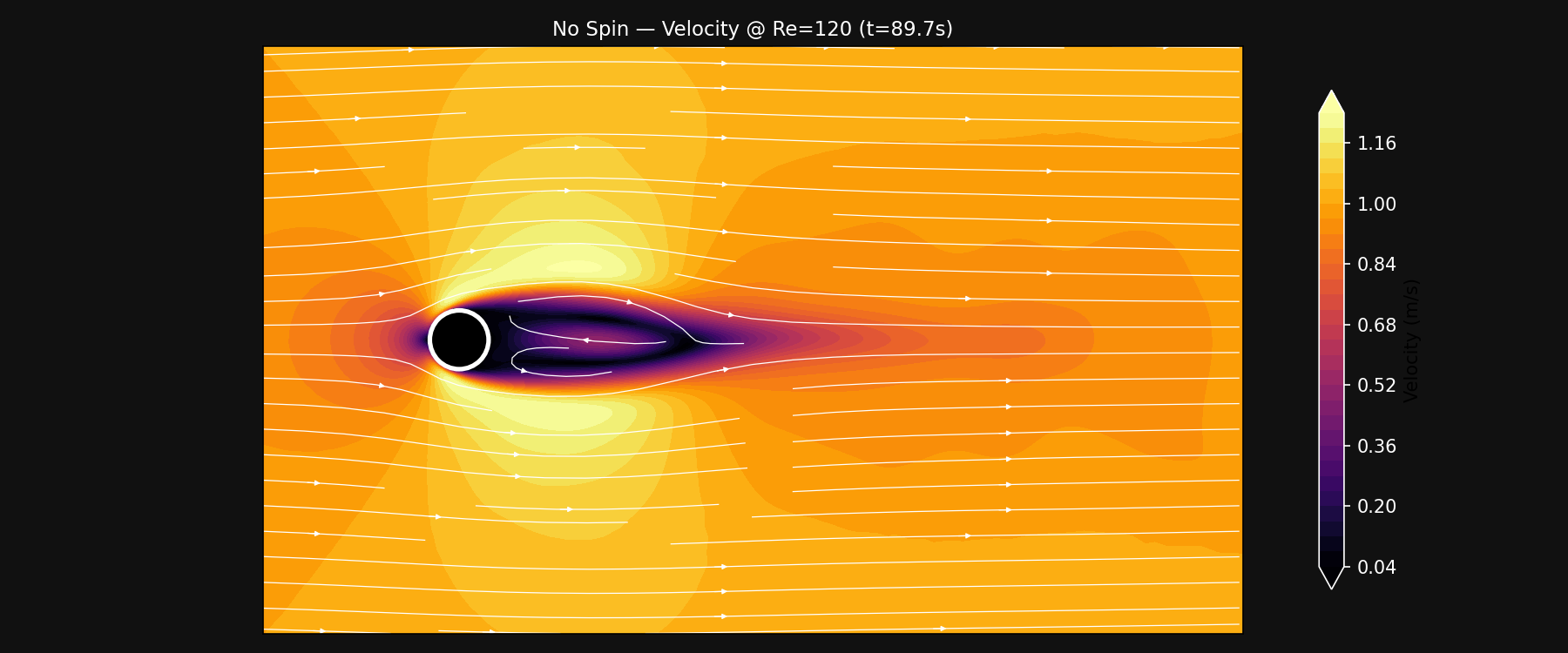

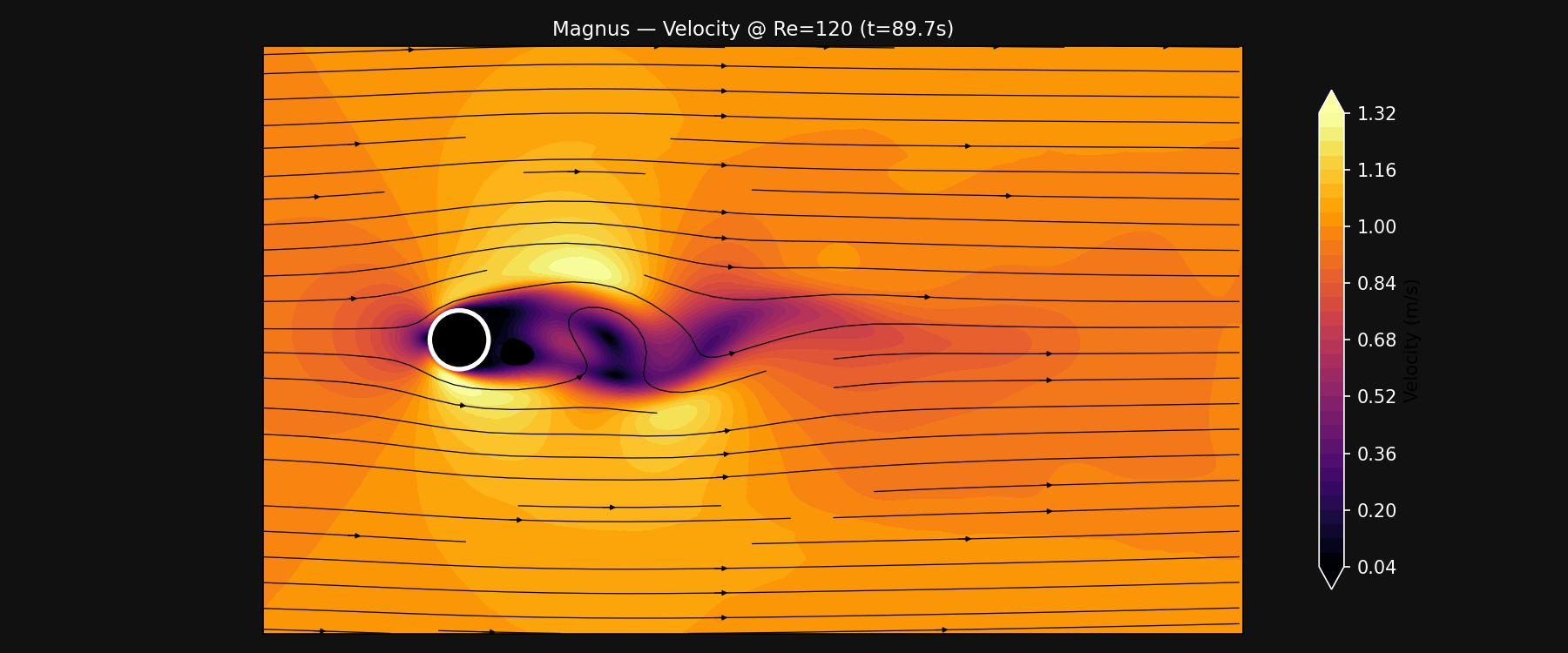

In the no-spin case, the velocity field shows a symmetric low-velocity zone behind the cylinder at this snapshot. Recirculation zones visible in the streamlines reveal the forming vortex structures that produce the low-pressure wake. These zones match the symmetric blob seen in the pressure field. The recirculation behaviour is what leads to the large wake and vortex shedding seen in the ΦFlow animations. The Magnus case shows a controlled alternating wake with no visible recirculation zones, evidence that the spin stabilizes the flow.

Surface Pressure Coefficient (Re=120, 200, 500)

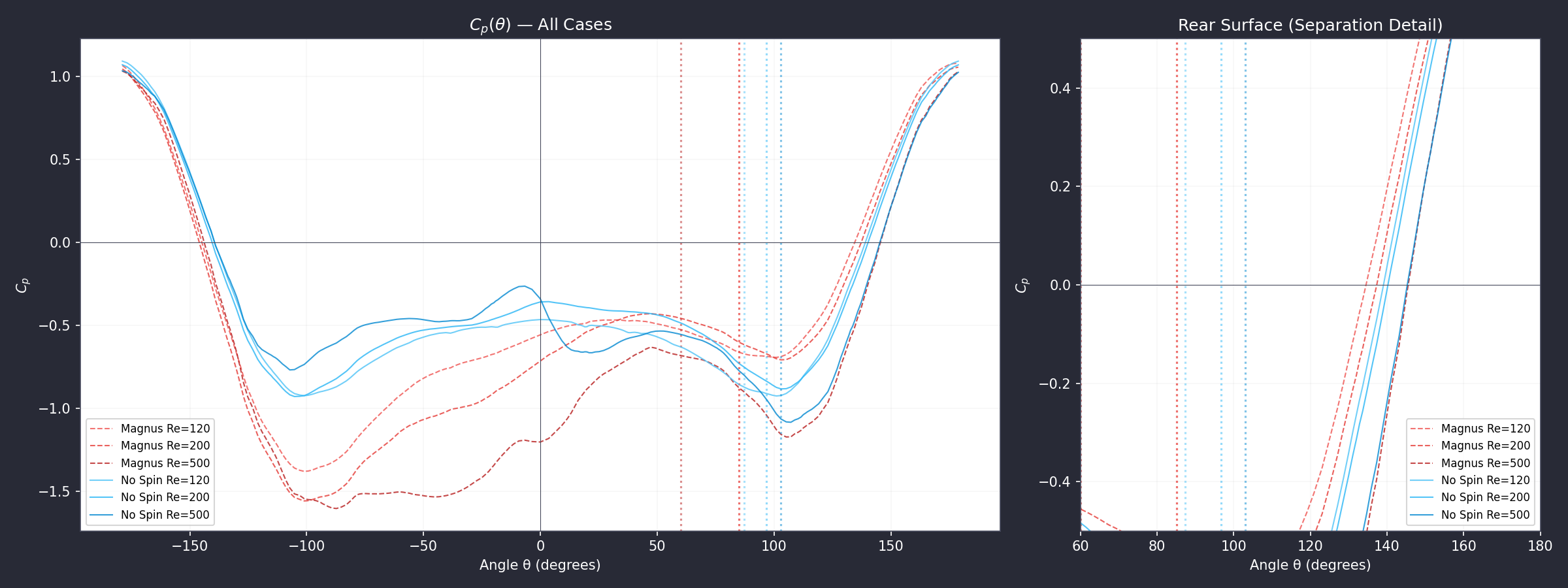

The pressure coefficient C_p(θ) around the cylinder surface is the standard for CFD validation. It reveals exactly where the flow accelerates (suction peak on the front shoulder) and where it separates (pressure plateau on the rear surface). The separation angle θ_s increases with Reynolds number: 87° at Re=120, 97° at Re=200, 103° at Re=500, consistently matching the literature trend (Williamson 1988, Tritton 1959).

The Magnus cases show systematic asymmetry in the C_p distribution: the top (advancing) side has lower pressure, the bottom (retreating) side has higher pressure. The integrated difference produces the lift coefficient C_l that drives the curving trajectory. At Re=200, the Magnus lift bias is strongest at C_l = −0.39, corresponding to a spin parameter S = ωR/U ≈ 0.12 for a full-size soccer ball spinning at ~310 rpm.

Reynolds Number Comparison Animations

The shedding frequency evolves with Reynolds number: higher Re produces faster shedding (higher Strouhal number) and a narrower wake. Below are Re sweep animations comparing Re=120, 200, and 500 for no-spin and Magnus cases separately.

In the no-spin comparison, the dark low-pressure vortices in the wake become smaller and faster from Re=120 to Re=500, the wake narrows and shedding accelerates. In the Magnus comparison, the spin locks the low-pressure region to the advancing (bottom) side across all three Re, suppressing the alternating pattern entirely.

Quantitative Validation Table

All Strouhal numbers agree with Williamson (1988) to within 5%. The no-spin C_d values match Tritton (1959) to within 3%. The Magnus cases show that spin increases drag (C_d rises by 10-60% vs no-spin) because the spin disrupts the wake and forces earlier top-side separation. This is a key insight, spin does not just curve the ball, it also slows it down.

At Re=500 (St=0.20), the cylinder sheds at 0.33 Hz, meaning the lateral force flips roughly every 3.0 seconds. For a real knuckleball at soccer Reynolds numbers (Re∼400k, St∼0.20), the shedding rate is roughly 30 Hz, too fast for the ball to fully respond but enough to create the erratic jitter. The spin case generates a steady lateral force instead: at 30 m/s with $S \approx 0.2$, a soccer ball experiences sideways acceleration of 5–10 m/s$^2$ (Carre et al. 2002), bending its flight by 1–3 m over 25 yards. That is the difference between hitting the top corner and sending it wide.
